Wave Agility is the world’s first cost-effective solution for enabling mm-Wave signals to penetrate inside home/buildings through the Infrared (IR) shielded glass and walls without drilling holes. It is also simple to install by the consumer as it is a consumer product. Building materials and IR shielded glass prevents mm-waves from penetrating.  Wave Agility has a product portfolio for different mm-wave bands including 28GHz Band (A1, A2, B1, and B2), 39GHz Band, 60GHz Band, and 3.5GHz Band.

Covers all mm-Wave bands
Wave Agility products cover all mm-wave bands including 28GHz Band (A1, A2, B1, and B2), 39GHz Band, 60GHz Band, and 3.5GHz Band.

Powerful Flexible Configuration
Wave Agility products are designed to work with different types of walls and windows in order to enable mm-wave signals to penetrate inside home/buildings.

Robust Weather-Resistant Design
Wave Agility features a metal/plastic design built to withstand the harshest environments including precipitation, hot/cold weather and high/low humidifies.

Wireless Power Transfer

The technology is demonstrated for both wireless traffic as well as wireless power transfer (from inside to outside using magnetic resonance coupling).

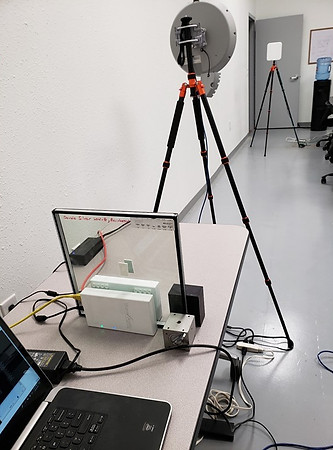

wave agility prototype.jpg

Features

HARDWARE FEATURES

  • 2x Gigabit Ethernet Port (PoE IN)

  • 1x power tap (Power Out)

  • 1x USB 2.0 Port (optional)

  • Dual flash image support

LED

  • Power, Internet, Wireless, Health/Status, Aiming

DIMENSIONS

  • Repeater: 100 x 100 x10 mm

  • Transceiver: 100 x 100 x 10 mm

WEIGHT

  • Repeater: 0.35 kg

  • Transceiver: 0.3 kg

POWER

  • 24V/1A passive Gigabit PoE

  • 20W max power consumption

  • Magnetic resonance wireless charging

OPERATION ENVIRONMENT

  • Operating temperature: -40°C to +70°C

  • Store temperature: -40°C to +70°C

  • Operating humidity: 10% to 90% non-condensing (RH)

REGULARITY

  • FCC/IC

  • CE

RANGE

  • Up to 60m (200 feet)

RF PERFORMANCE (TX)

  • Repeater: 14dBm (1Gbps aggregate throughput)

  • Transceiver: -1dBm (1Gbps aggregate throughput)

RF PERFORMANCE (RX)

  • Repeater: -74dBm @ MCS1; -65 @MCS5; -60dBm @ MCS9

  • Transceiver: -74dBm @ MCS1; -65 @MCS5; -60dBm @ MCS9

CHANNEL BANDWIDTH

  • 2GHz @ 60 GHz

KEY FEATURES

  • 1Gbps aggregate throughput

  • Available for different mm-wave bands including 28GHz Band (A1, A2, B1, and B2), 39GHz Band and 60GHz Band

  • Supports different types of walls and windows

  • Supports service provider and enterprise type networks

  • Stand-alone or cloud controlled operation modes

APPLICATIONS

  • mm-Wave Wireless access inside home/buildings

  • 4G/5G 200 feet access

  • Metro WiFi

  • Campus Interconnection

  • Hybrid Fiber/Wireless Networks

wave device.JPG
